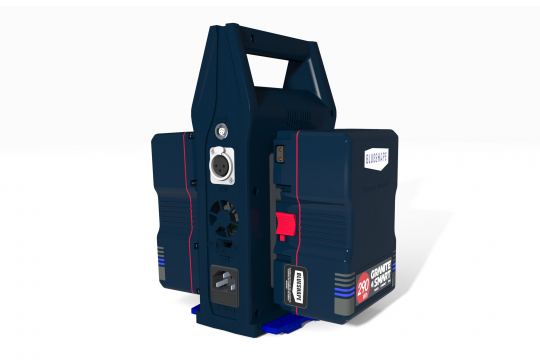

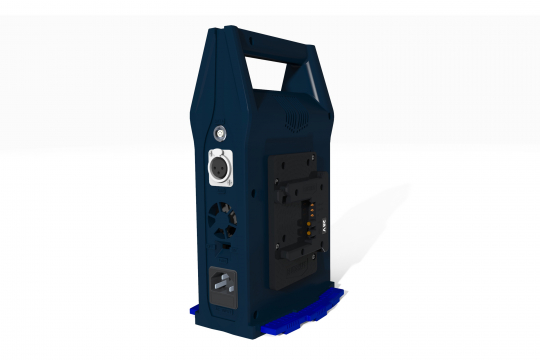

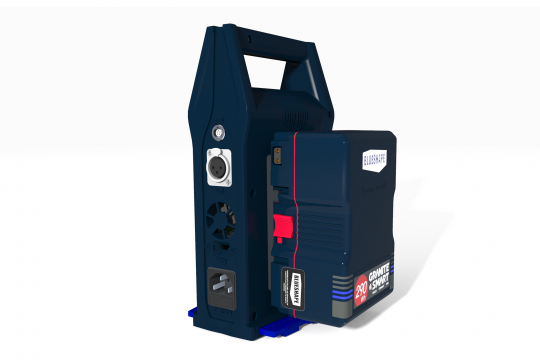

CBTR2P is the professional charger for the High-Voltage B-Mount batteries.
- Input: AC 100-240V 47-63Hz
- Output:
- 2x DC 33.6V 3.0A 100W max, simultaneous
- 1x AUX DC nominal 28V 7A 150W max.
- Simultaneous charge: all the 2 batteries are charged in parallel for maximum performance
- Adaptive charge current: fast with large batteries, gentle with smaller
- Universal charger: can charge any brand of B-Mount batteries enabled to charge as 28V batteries
- ON-OFF switchable fan for quiet operation
- DC-UPS: AUX output always available even during charge. Without AC connected, the installed batteries provide power to the AUX output in sequence
- Data socket for charger monitoring and diagnostic
- Retractable Foot design, great stability, minimum size
- Size: 260 x 150 x 85mm (10.24" x 5.91" x 3.35")
- Weight: 1.25Kg (2.75lbs)
Charging performance:
- BB145 145Wh: 2h 30m
- BB290 290Wh: 3h 15m
- BB435 435Wh: 5h
